Gnss Kolida K30

KOLIDA
K30-A2501650
  • Description
  • More

Gnss Kolida K30. All Constellations and More Channels With 1598 channels, K30 is capable to track signal from 5 satellite constellations (GPS, Glonass, Beidou, Galileo, QZSS), process signal of up to 16 frequencies and provide stable and reliable accuracy.

Gnss Kolida Instrument


Gnss Kolida K30. All Constellations and More Channels With 1598 channels, K30 is capable to track signal from 5 satellite constellations (GPS, Glonass, Beidou, Galileo, QZSS), process signal of up to 16 frequencies and provide stable and reliable accuracy

UP 25 Hours

Working Endurance.

1598 Channels

All Constellation Signal Tracking.

UP to 15 KM

Built-in Radio Working Range.

L-Band

Powered by BDS B2b.

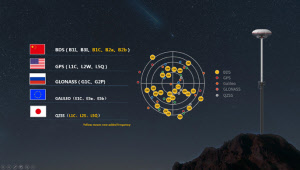

More Channels are Available

The integrated advanced 1598-channel GNSS technology helps K30 to collect signal from GPS, Glonass, Beidou, Galileo, QZSS, in particular the latest BeiDou III. It greatly improved the data quality and satellite signal capturing speed of GNSS surveying.


More channels

More Freedom  to Operate

K30 has a colorful touch screen, users are able to operate GNSS receiver like their smart phone. Using both of touch screen and key buttons will make your workflow easier and faster.


Freedom


Down to 4-10 cm Positioning by L-band

Thanks to the newly developed BDS correction service, K30 is able to receive B2b signal via L-band, and perform a single point positioning precisely without base station.

It is a great help to surveyors who work in particularly difficult areas. This service is available in 2022 in Asian-Pacific region.

L-Band

New Radio, Farlink Tech.

Farlink technology is developed to send large number of data and avoid data loss.

This new protocol improves the signal-catching sensitivity from -110db to -117db, so K30 can transmit to 10 km away by only 1 watt power consumption and to 15 km away by 3 watt power (in optimal environment condition).


Farlink


Working Longer, Stop Less.

Thanks to the low consumption operation system design, K30 can work up to 10 hours in RTK base mode and up to 25 hours in rover mode, up to 27 hours in static mode. (Environment temperature is 25℃)

K30 can be recharged by Type-C USB connector

25

Constantly Upgraded Inertial Measurement

KOLIDA’s 3rd generation inertial sensor and algorithm are onboard now. The working speed and stability have been improved for 30% from the last version. When the GNSS fixed solution is lost and recovered again, Inertial sensor can remain the working status in a few seconds, no need to spend time to reactivate it...

Tilt angle is up to 60 degrees, accuracy is down to 2-3cm (when tilt angle is within 30°), 5cm (tilt angle within 60°)


IMU
