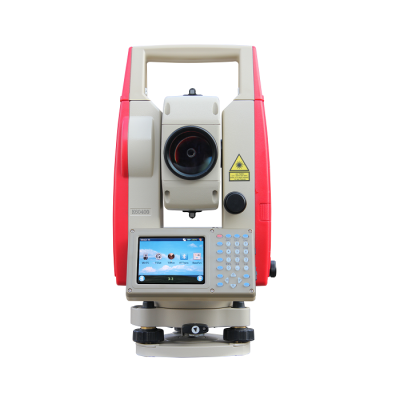

Total Station KTS-472R

KOLIDA
KTS472R-A2501890
ex Shipping kg
Add to cart
  • Description
  • More

Kolida Total Station, KTS-472-R 1000m/2000m no prism. Measures 5 km single prism, Colorful Touch Screen, Large Screen with Win CE 6.0 Operating System. Laser Plummet

Total Station KTS-472-R 1000m/2000m no prism, 1" accuracy
Reflectorless: 1000M/2000m Measures 5 km single prism, Colorful Touch Screen, Large Screen with Win CE 6.0 Operating System. Laser Plummet



VIDEO Data transfer via FlashDisk

VIDEO Appearance and keys

VIDEO Basic Measurement

VIDEO Measurement Setup

VIDEO Standard Measurement

VIDEO Main menu function of Field Genius

VIDEO Field Genius measurement

VIDEO Measure 1,000m without prism

VIDEO Contents







1000 m
2000 m

Reflectorless Range…

Touch Screen

Colorful 3.5", 640x480p…

Mapping Software

Graphic Display…

Bluetooth & Wifi

Wireless Communication…

Models:KTS-472R10LC, KTS-472R20LC, KTS-491

MAPPING SOFTWARE GRAPHIC DISPLAY

This advanced Total Station employs a series of mapping software to choose by users. Such as Microsurvey FieldGenius, KOLIDA Engineering Genius. User can customize their own programs too.

HIGHEST DEFINITION SCREEN IN ITS CLASS

640×480 LCD touch screen display on both sides gives surveyors a clear, colourful and fully graphical environment, user can easily find details on their high resolution drawing/ designing/ background map.

BLUETOOTH & WIFI

An external controllers can be linked to total station, through the Bluetooth™ wireless connection.

Data transfer can be realized via both Bluetooth and wifi.

TEMPERATURE & PRESSURE SENSORS

Temperature and pressure changes have a negative impact on the accuracy of distance measurements. The Smart T-P Sensor automatically monitors the changes and adjusts the distance calculations.

LONG DISTANCE MEASUREMENT

Thanks to the high efficiency EDM, 472 features long distance measurements:

1000/2000m in reflectorless mode and up to 5000m using a single prism, with millimeter accuracy.

FAST, ACCURATE, RELIABLE EDM

The fastest distance measuring speed is down to 0.1 to 0.3 second, with 2mm accuracy, makes any job extremely cost effective and reliable.

LARGE MEMORY EASY DATA MANAGEMENT

The 512Mb internal memory and SD card up to 32 Gb can store a huge amount of data. Users don't need to worry about memory space. Easily operation on data adding, deleting, modifying, transferring.Total station can be recognized as a flash memory disk by PC.
