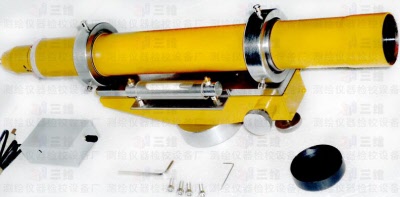

Optical Collimator WD550, Precision 30" Aperture 57mm

Tubo colimador WD550, Colimador para teodolitos, estaciones totales y para niveles ópticos

Product information

1.1 This model of equipment adopts totally collimator tubes which have the focus of 550 and been designed with plunge angle and collimation horizontal angle.

1.2 The collimator tube is equipped with a reticle with the precision 30", which can significantly improve the inspection precision.

1.3 The collimator tube is equipped with up/down and right/left tuning device, therefore easy for

customers’ usage, installation, commissioning and inspection.

1.4 The collimator tube adopts the latest long-life “cold” light source, which intensity may be

tuned according to customers’ requirements and indoor luminance. The source produces viridescent lights, which are comfortable for seeing.

1.5 On the lifting platform, the threaded rod allowing 26cm lifting range runs smoothly and

stably, and with different configuration, enables customers to operate readily and easily.

1.6 The foundation is designed and installed with 4 leveling wheel, and at the bottom, 4 round pads can increase the ground force-carrying surface and the stability. The whole platform is available for leveling and moving.

1.7 The fixed, integrated instrument center screws on the lifting platform are common in both metric and British systems (two-in-one), and can be combined for checking different foreign

and domestic measuring instruments.

1.8 The equipment is designed with small form factor and looks decent and charming. The total weight is 100kg and the equipment stands very firmly.

WD550:

Main Technical Parameters of Tubes:

  Tube length: 565mm

  Tube focus: 550mm

  Tube Aperture: 57mm

  Resolution: 3"

  Angle of field of view: 10°20

  Accuracy(Reticle’s division value): 30"

  Magnification: 5.7~7X



  The micro adjusting range of the front/back horizontal tube: 5"

      Horizontal: ≤10",

   Vertical: ≤10"  The shortest target of the level tube: 2m

  The far target: ∞


  Power supply for tube: 4.5~6V,2.1W

  Switch power: 1~10A



  Lighting source: cold light (with adjustable intensity), green
