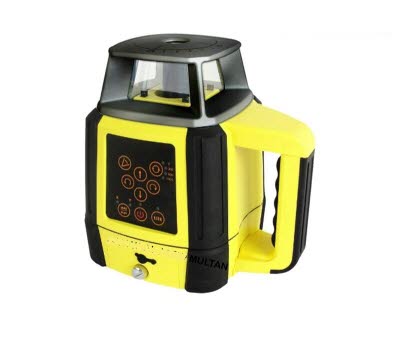

Laser Level FRE 102B Red/Green beam Laser. Fully automatic electronic leveling. Rainproof and dustproof. Fine calibration function

ITALGEIN | KOLIDA
Rotaing Laser FRE-102B green beam laser with high quality accuracy for laser

Diameter 800m laser for field level purpose.

 Product Description :

* Electronic self-leveling, wide leveling range, high precision and stability.

* Horizontal only applications

* With scanning function.
* With clockwise and counterclockwise rotating function.
* Manual with dual axis slope adjustment. +/-5degree for adjusting.
* High impact composite housing with protective rubber overmolding,

 Top cover made with heavy metal,supply better protection for laser unit.

* Full function IR remote control.

* H.I. (elevation) alert with separate switch.


Specification :
Level system: Electronic sensor fast leveling.
Accuracy: ±15"(0.75cm per 100m)
Self leveling range: ±5°
Operation rang: 800m(Dia.) with detector
Three head speeds: 100,300,600 R. P. M.
Four scan widths:10°; 45°; 90°; 180°
Bright, visible beam;Wavelength 635nm
IR Remote control;Available distance:20 m
Working temperature: -20ºC ~ +50ºC (-4°F~+122°F)
Power supply: DC 4. 8-6V(4xsub-C NI-MH batteries or 4x alkaline batteries)
Continiuance working time: Approx. 40hr.
Waterproof and dustproof: IP 55
Dimension: 170(L) X 220(W)X 230(H)mm
Weight: 3.8kg(Laser only)
