Colimador de Mesa

SOUTHGEOSYSTEMS
GA-W3002-A250810
excl. Entrega kg
  • Descripción
  • Mas Info
  • Especificaciones

Colimador optico de Mesa

Colimador optico de Mesa, Colimador Optico Colimador para estaciones totales, teodolitos, y Niveles Opticos
Colimador optico de Mesa

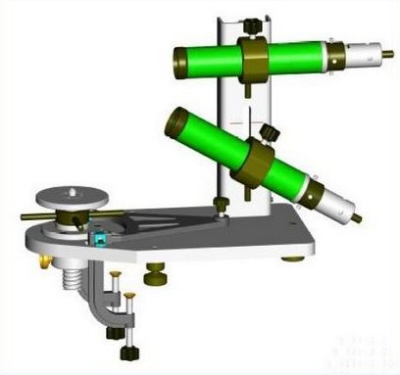

Portatil Collimator



1 Quantity of Collimator tubes 2 pcs.
2 Focal Length of the Collimators 300mm
3 Working Range 2m to ∝
4 Effective Aperture

50mm

( D/f’ = 1/6 )

1/6 = 0.16

5 Graduating Scale of the Target Plate ( ∝) 15”
6 Graduating Scale of the Target Plate ( 2m) 30”
7 Elevating Range 0 - 60 mm
8 Max Loading Weight ≈ 20 kg
9 Working Vlotage 6V
