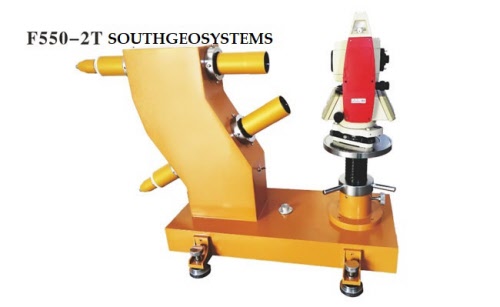

1 This model of equipment adopts totally two collimator tubes which have the focus of 550
and been designed with plunge angle and collimation horizontal angle.
2 The collimator tube is equipped with a reticle with the precision 30", which can
significantly improve the inspection precision.
3 The collimator tube is equipped with up/down and right/left tuning device, therefore easy
for customers’ usage, installation, commissioning and inspection.
4 The collimator tube adopts the latest long-life “cold” light source, which intensity may be
tuned according to customers’ requirements and indoor luminance. The source produces
viridescent lights, which are comfortable for seeing.
5 On the lifting platform, the threaded rod allowing 26cm lifting range runs smoothly and
stably, and with different configuration, enables customers to operate readily and easily.
6 The foundation is designed and installed with 4 leveling wheel, and at the bottom, 4 round
pads can increase the ground force-carrying surface and the stability. The whole platform
is available for leveling and moving.
7 The fixed, integrated instrument center screws on the lifting platform are common in both
metric and British systems (two-in-one), and can be combined for checking different
foreign and domestic measuring instruments.
8 The equipment is designed with small form factor and looks decent and charming. The
total weight is 100kg and the equipment stands very firmly.
*Main Technical Parameters of Tubes:
Tube length: 565mm
Tube focus: 550mm
Tube Aperture: 57mm
Angle of field of view: 10°20'
Accuracy(Reticle’s division value): 30"
The shortest target of the level tube: 2m
The far target: ∞
Power supply for tube: 4.5~6V,2.1W
Switch power: 1~10A
Lighting source: cold light (with adjustable intensity), green
Shipment package: 1wooden case,110kgs,0,50CBM.
