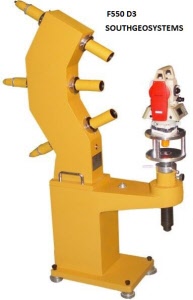

Collimatore Ottico F550-D3

SOUTHGEOSYSTEMS
F550D3-A2501299
Netto Spedizione kg
  • Descrizione
  • Altri Dettagli

Collimatore Ottico F550-D3, Collimatori ottici, Collimatore per Stazioni totali, Collimatore per Teodoliti, Collimatori per livelli, Collimatore ottico

Collimatore Ottico F550-D3, Collimatore per Stazioni Totali, Teodoliti, Livelle e Teodoliti

Main Technical Parameters of Tubes:



  Tube length: 565mm

  Tube focus: 550mm

  Tube Aperture: 57mm

  Resolution: 3"

  Angle of field of view: 10°20'

  Accuracy(Reticle’s division value): 30"

  Magnification: 5.7~7X

  The shortest target of the level tube: 2m

  The far target: ∞



  Tubes position:

  Horizontal(0°),elevation(30°) and depresion(30°)

Lifting range of the lifting platform: 300mm

  Max. Loading weight on support column: 40kgs

  Round level(On the foundation of the front column): 8"/2mm,

  Power supply for tube: 4.5~6V,2.1W

  Switch power: 1~10A

  Lighting source: cold light (with adjustable intensity), green



  Dimension:168x110x45(mm)

  Shipment package: 2wooden case,110kgs,0.725CBM
