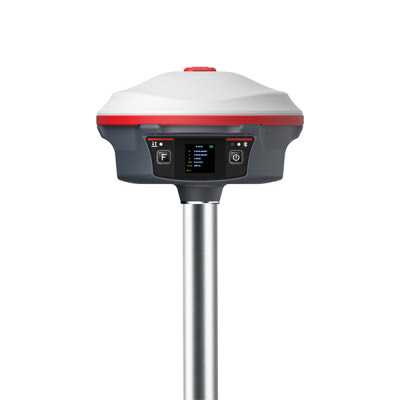

Gnss Kolida K30 Pro

KOLIDA
K30Pro-A2502480
Option
ex Shipping kg
  • Description
  • More

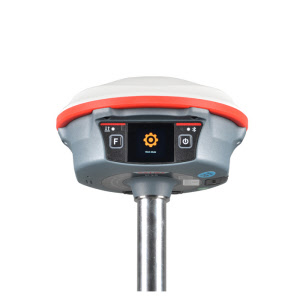

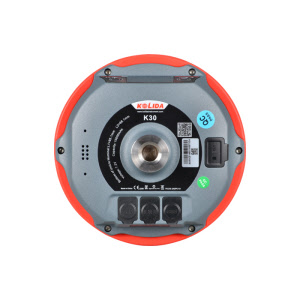

Gnss Kolida K30 Pro. 2022 Flagship model of Kolida GNSS family! The best accuracy and stability!

Gnss Kolida K30 Pro
Gnss Kolida K30 Pro

The World Leading. GNSS Engine


The Maxwell 7 GNSS engine inside K30 PRO provides an ultra-fast positioning speed, typically it starts tracking satellite signal within 5 seconds after turning on, coordinate can be acquired within 10 seconds.

Gnss Kolida K30 Pro
Gnss Kolida K30 Pro

Star-Fill,

Save the Signal Loss
This unique function will let you to continue working a few minutes when radio or mobile signal is becoming very poor or even lose in blind area.  The accuracy is down to 2cm.


Star-Link,

Infinite Freedom
2cm accuracy Star-Link correction service is available! After subscribing to it, surveyors can work almost anywhere in the world without a base station or VRS network. Ideal solution for surveying and mapping, natural resource exploration in remote area.
(The photo left is a Kolida user who uses Star-Link to work in original forest in Sabah State, Malaysia, without base station and CORS network.)

Gnss Kolida K30 Pro
Gnss Kolida K30 Pro

Intuitive and Vivid
Screen Display

K30 Pro has a 1.3 inches colorful sreen, which displays measurement data and settings completely and provides a clear visibility under sunlight. It makes sure that all informations are in your control.

More Freedom to Operate

By using the touch screen on K30 Pro, users are able to operate GNSS receiver like their smart phone. Using both of touch screen and key buttons will make your workflow easier and faster.

Gnss Kolida K30 Pro
Gnss Kolida K30 Pro

New Radio, Farlink Tech.

Farlink technology is developed to send large number of data and avoid data loss.
This new protocol improves the signal-catching sensitivity from -110db to -117db, so K30 can transmit to 10 km away by only 1 watt power consumption and to 15 km away by 3 watt power (in optimal environment condition).


Working Longer, Stop Less.

Thanks to the low consumption operation system design, K30 Pro can work up to 10 hours in RTK base mode and up to 25 hours in rover mode, up to 27 hours in static mode. (Environment temperature is 25℃)
K30 Pro can be recharged by Type-C USB connector.




Gnss Kolida K30 Pro

Gnss Kolida K30 Pro


Constantly Upgraded. Inertial Measurement

KOLIDA’s 3rd generation inertial sensor and algorithm are onboard now. The working speed and stability have been improved for 30% from the last version. When the GNSS fixed solution is lost and recovered again, Inertial sensor can remain the working status in a few seconds, no need to spend time to reactivate it...
Tilt angle is up to 60 degrees, accuracy is down to 2-3cm (when tilt angle is within 30°), 5cm (tilt angle within 60°)

New app.   New Productivity

Windows CE data controller is too old technology?
No problem. Simply use Ksurvey, Field Genius Android, SurvX App on your smart phone or tablet.
Enjoy the smooth operation of Android platform !


Gnss Kolida K30 Pro
Gnss Kolida K30 Pro

Post-processing Sw. Free of Charge

2022 version KOLIDA GEO Office integrates
static data processing & Kinematic data adjustment
(Long baseline processing function is optional)
