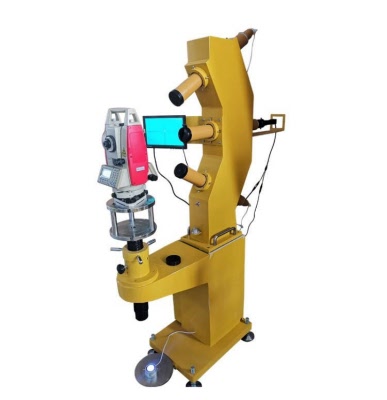

Digital Collimator F550CCD-D3A

SOUTHGEOSYSTEMS
F550CCD-D3A-A2502099
ex Shipping kg
Add to cart
  • Description
  • More

F550CCD-D3A is a stand type collimator which can be used for calibration or maintenance for the autolevels, laser levels,theodolites and total station.

F550CCD-D3A is a stand type collimator which can be used for calibration or maintenance for the autolevels, laser levels,theodolites and total station.

PARALLE LIGHT TUBE:

 FOCUS(Nominal value )F=550mm

  Effective aperture:57MM

  RESOLUTION:3″

  MIN. VALUE OF THE RETICLE:30″

   ADJUSTABLE RANGE OF THE TUBE:

HORIZONTAL AXIS≥30′VERTICAL AXIS≥30′

TOP TUBE: 30 DEGREE; HORIZONTAL TUBE:90DEGREE; DOWN TUBE: 30DEGREE



 DIGITAL EYEPIECE SYSTEM:

CCD Camera:Industrial camera

         CCD bin size: Light - sensitive chip 1/3inch

Total pixels: 2million (optional)

         Data cable: BNC CABLE

FOCUS:45mm

DIGITAL CCD RESOLUTION:≤0.015mm

LENS TYPE:INDUSTRIAL

LIGHT SOURCE: LED PIONT LIGHT

CCD POWER ADAPTOR:12V

         LED POWER:6V/12v(Light intensity can be fine-tuned)

INSTRUMENT FLATFORM LIFTING RANGE: ≥240MM
