Total Station CTS632R10M

KOLIDA
CTS632R10M-A2251490
ex Shipping kg
  • Description
  • Future
  • Specifications

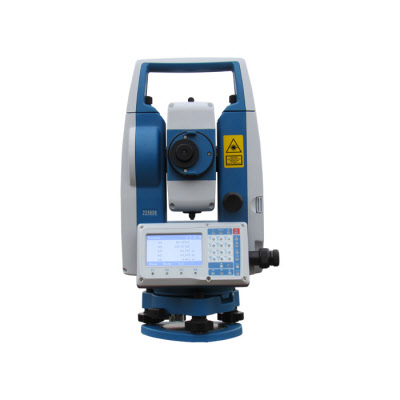

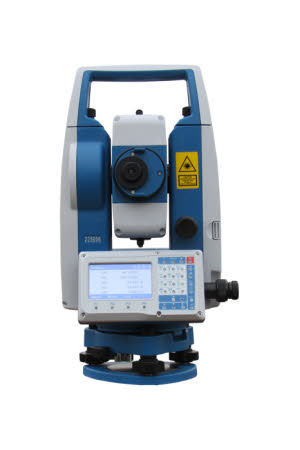

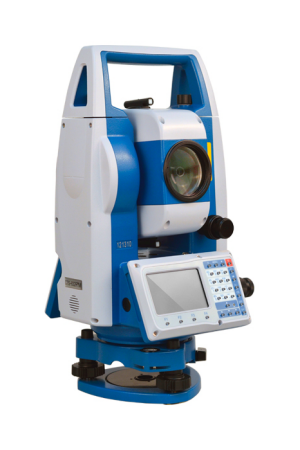

Total Station X-Meter CTS632R10M, 1000mts Reflectorless. Measures 5 km single prism, 3.7 inch Graphic, Color, touch screen 4' dual tilt, 1" accuracy T/P sensor, SD card, Thumb Drive MicroSD, MicroUSB, Laser Plummet, Trigger Key, Auto-Height Function

Total Station X-Meter CTS632R10M

Another new release for April 2021: Auto-Height Function for CTS-662/632R10M​

VIDEO Auto-Height Function

VIDEO Non-prism measuring

VIDEO COGO

VIDEO Increase efficiency

VIDEO Survey Program

VIDEO Contents

X-Meter CTS-632

Models:CTS-632R10M

Touch Screen + Keyboard, new developed surveying and COGO

program will enhance your productivity!



1000m


Reflectorless Range

More Program

Survey & COGO

TouchScreen



& physical keyboard



Trigger Key



Quick Measurement



Advanced Hardware, Top Performance


CTS-632R10M set a new standard for high class total station. Its 1000 meter range EDM, density ball bearing axis system, high accuracy angle measurement module represent the highest level of manufacturing skill of China.



Stazione Totale Kolida CTS632R

   Touch Screen, Way of Fast work

CTS Series features a new design with a full keyboard and touch screen. The operating speed is over 30% faster than traditional total station which has only keyboard.

Videohttps://youtu.be/Mc50Ei9KqRg



Stazione Totale Kolida CTS632R



Trigger Key, Measure When You See


Without moving your eyes away from telescope and pressing buttons on screen orkeyboard, trigger key allows you to measure simultaneously when you sight at the target. It saves time and erases mistake.


Video CTS-632:  https://www.youtube.com/watch?v=eK52hu4BTKs



Stazione Totale Kolida CTS632R

        Temp. & Pressure Auto Setting

Temperature and pressure changes make a negative impact on the accuracy of distance measurements. The Smart T-P Sensor automatically monitors the changes and adjusts the distance calculations.

Video:   https://youtu.be/Mc50Ei9KqRg?t=128

Stazione Totale Kolida CTS632R



    Fully Functional Survey Programs

Angle, Distance, Coordinate Measurement and setout.

Distance, Plane, Column offset, Missing Line, Remote Elevation, Reference Line, Resection, Point-to-Line measurement, Height Transfer.

Road design and Setout. Video https://youtu.be/W3IF6d6mqp4



Stazione Totale Kolida CTS632R

COGO (coordinated geometry)



Coordinate calculation, Angle Distance Calculation, Area & Perimeter, Point-to-line inverse calculation, Point Projection.


Video:  https://youtu.be/lAqSW5qt23Y

CTS632-EN

Distance Measurement

Measurement Range:

1 prism: 3500-4000m

Reflectorless:

1000m

Accuracy:

Prism:

±(2+2ppmx D)mm

Reflectorless:

±(3+2ppmx D)mm

Measuring Time:

Prism: 0.2 - 1.3s

Reflectorless:   0.5-3s

Atmosphere Correction

Auto

Prism Constant Correction:

Auto



Angle Measurement

Measurement Me:



Absolute Encoding

Accuracy:

 2"

Minimum Reading:

0.1"/ 1" optional

Compensator: Dual Axis Liquid-electricRange ±4', Accuracy 1"
User Interaction

Operation System:



Linux

Color Screen:

Yes, 3 inches LCD

Touch Screen:

Yes

Keyboard:



30 keys with backlight

Trigger Key:

Yes

Bluetooth & wifi:

N/A

Internal Storage:

2MB

External Storage:



8GB USB flash disk, 8GB SD card

Working Capability

Program:

Coordinate measurement, setout,area, COGO, road,design

Graphic Display:

N/A

Laser Pointer & Laser Plummet:

Yes

Endurance:

8 hours

Setout Guide Light:



Optional

Camera Function:

N/A
