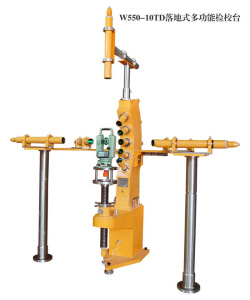

Optical Collimator W550-10TD

SOUTHGEOSYSTEMS
W55010TD-A2504999
ex Shipping kg
  • Description
  • More

W550-10TD is for calibration and maintenance of the autolevel,theodolite,ttotal station and laser/optical plummet

W550-10TD is for calibration and maintenance of the autolevel,theodolite,ttotal station and laser/optical plummet

Main Technical Parameters:



  Tube length: 565mm

  Tube focus: 550mm

  Tube Aperture: 57mm

  Resolution: 3"

  Angle of field of view: 10°20'

  Accuracy(Reticle’s division value): 30"

  Tubes position:

  Horizontal(0°,45°,90°,270°,315°),vertical(90°),elevation(15°,30°)

  and depresion(15°,30°)

  Adjusting range of the tubes: Horizontal:≥60´, Vertical:≥60'



  Magnification: 5.7~7X

  The shortest target of the level tube: 2m

  The far target: ∞

  Lifting range of the lifting platform: 300mm

  Max. Loading weight on support column: 40kgs

  Round level(On the foundation of the front column): 8"/2mm,

  Power supply for tube: 4.5~6V,2.1W

  Switch power: 1~10A

  Lighting source: cold light (with adjustable intensity), green



     Shipment package:5WOODEN CASES,270KGS,1.08CBM
