Digital Collimator F550CCD-T1
SOUTHGEOSYSTEMS
F550CCDT1-A2501399
From
  • Description
  • More
  • Specifications

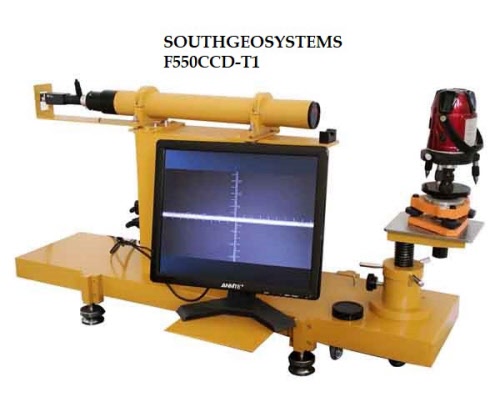

Digital Collimator F550CCD-T1. This instrument is dedicated to test and adjust the horizontal accuracy of the laser levels.

The instrument and be used for professional testing and calibration of the accurracy of the autolevel i angle, autolevel with laser pointing, theodolite and total station with laser pointing. Coaxial precision of the reticles.
This instrument is dedicated to test and adjust the horizontal accuracy of the laser levels. The instrument and be used for professional testing and calibration of the accurracy of the autolevel i angle, autolevel with laser pointing, theodolite and total station with laser pointing. Coaxial precision of the reticles. The instrument has a collimator tube with industry CCD camera,it is equipted with dedicated industrial lens and laser filter. These fetures along with the all metal body make it form a complete and perfect inspection system for the laser levels and other instuments.

Colimador para niveles Laser  SGS FF550CCD - F420CCDPARRALLE LIGHT TUBE: FOCUS（Nominal value ）F=550mm
  Effective aperture:57MM
  RESOLUTION：3″
  MIN. VALUE OF THE RETICLE:30″
   ADJUSTABLE RANGE OF THE TUBE:
HORIZONTAL AXIS≥20′VERTICAL AXIS≥20′
 DIGITAL EYEPIECE SYSTEM:
CCD Camera：Industrial camera
            CCD bin size: Light - sensitive chip 1/3inch
Total pixels: 2million (optional)
            Data cable: BNC CABLE
FOCUS：45mm
DIGITAL CCD RESOLUTION:≤0.01mm
LENS TYPE：INDUSTRIAL
LIGHT SOURCE: LED PIONT LIGHT
CCD POWER ADAPTOR: 6V
             LED POWER：3.5v（Light intensity can be fine-tuned）

CCD-En

SPECIFICATION:

*OPTICAL TUBE:

Tube focus: F550CCD: 550mm; F420CD:420mm

Tube Aperture: F550CCD:55mm; F420CCD:53mm

*DIGITAL EYEPIECE

TYPE OF CCD: Industrial Camera

CCD size: 1/2inch or 1/3inch

PIXEL: 3MILLION

Focus:45mm

Lens type: Telecentric Lens

Light source: LED

CCD Power input: 6v

LED Power input: 3.5V
