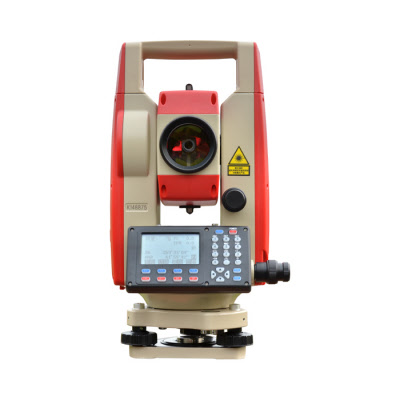

Total Station KTS-442-UT

KOLIDA
KTS442UT-A2251300
  • Description
  • Future
  • Specifications

Kolida Total Station KTS 442UT new series Reflectorless, New enhancements are coming! Trigger key and USB are added to KTS-442-UT series, as well as other 5 new updates.

Kolida Total Station KTS 442UT new series Reflectorless, New enhancements are coming! Trigger key and USB are added to KTS-442-UT series, as well as other 5 new updates.

KTS-442-UT Reflectorless

New Screen | Trigger Key | Bluetooth

Kolida KTS442-UT

New Screen Display, Brings You A Clearer Vision!

A series of new display chip, screen and font have been appied to 442UT. Measurement values   are displayed clearer and with bigger size. The display performance under low light conditions also is better than before.

Kolida KTS442-UT-B

Five New Improvements in 2021, to Level Up Your Productivity!

  • A new central processor unit (CPU) has been used in 442UT, the instrument calculates faster and the battery consumption is lower than before.

  • The built-in memory storage space has been improved from 4MB to 12MB, which can store 96,000 points.

  • Trigger Key and standard USB port have been added to 442UT.

  • Battery compartment is with new design and easier to handle.


   Videohttps://www.youtube.com/watch?v=LFlxCjIU1hA


Kts442UT-Display

Measures Longer and longer, Improvement Never Settles!


How could we lift the ranging cabability to a new level of 1000/1500m? The three key factors are "Dual-light Source Distance Measuring technology", optimization of the signal-to-noise ratio, a more stable objective lens system.



Video: 1000m and 1500m Non-prism measurement in cloudy weather


https://www.youtube.com/watch?v=bpnFW2EdxVY


KTS442-UT-Motore

A New Step to be More Accurate, Innovation Never Stops!



Every hard working surveyor deserves a higher precision than before.

Four innovations have been realized in our newly designed optical system to achieve this goal: "Focal Length Compensation Mirror", "Fully sealed emitting laser circuit", "Less reflectors in optical part", "the 4th Generation EDM CPU".

Articlehttp://www.kolidainstrument.com/news/details/id/113.html


KTS442-UT-Programmi

Practical Survey Program



Various of surveying programs onboard allow surveyors to complete their tasks directly in the field: angle offset, angle repetition, dual-distance offset, coordinate measurement, REM, MLM, Staking out,area calculation, Road Design, etc.


Video: https://www.linkedin.com/pulse/operation-video-kts-442r6lc-andy-lau/


KTS442-UT-FieldGenius

Compatible with FieldGenius

Working KTS-442-UT with graphic mapping software such as Microsurvey FieldGenius will optimize your productivity.

Video: https://www.youtube.com/watch?v=28KH3YCzk14


KTS442-UT-Data-Transfer

Convenient Data Transfer



KTS-442-UT supports SD Card/ Mini USB / Serial port cable/ Bluetooth connection. Special data transmission and editing software can quickly transfer data and save time.


Video: https://www.youtube.com/watch?v=eN-lMAkm6kM


KTS442-UT-Usb


Bluetooth


External device can be linked to total station, through the Bluetooth™ wireless connection. Then users can use their PC/ tablet/ Data Controller with 442-UT total station and run mapping software to collect data.


Videohttps://www.youtube.com/watch?v=2_4rXK8orZY

KTS442-UT
Distance Measurement

Measurement Range

1 prism: 5000m 3 prism: 8000-10000m

Reflectorless:  1000/ 1500m

Accuracy

Prism:   ±(2+2ppmx D)mm

Reflectorless ±(3+2ppmx D)mm

Measuring Time  0.1 - 1.5s
Atmosphere Correction

Manual Input

Prism Constant Correction

Manual Input



Angle Measurement




Measurement Me Absolute Encoding

Accuracy  2"/ 5" Minimum Reading 1"/ 5" optional
Compensator:  Dual Axis Liquid-electricRange ±4', Accuracy 1"






User Interaction




Operation System DOS

Color Screen N/A

Touch Screen  N/A

Keyboard

Full Alphanumeric keys with backlight

Trigger Key  Yes Bluetooth & wifi  Bluetooth
Internal Storage

12Mb, 96,000 points

External Storage

up to 32GB USB Flash Memory







Working Capability




Program

Coordinate measurement, setout, area, road design...

Laser Pointer & Laser Plummet Yes
Endurance

12 hours
