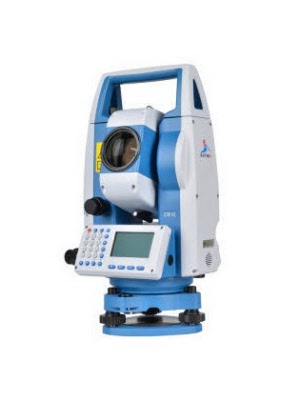

Total Station X-Meter CTS632R10

KOLIDA
CTS632R10-A2251250
  • Description
  • Future
  • Specifications

Total Station X-meter CTS632R10, 1000-mts Reflectorless. Measures 5 km single prism. 4' dual tilt, 1" accuracy T/P sensor, SD card, Thumb Drive MicroSD, MicroUSB, Laser Plummet

CTS632R10 BROCHURE PDF


Laser Total Station,  X-Meter  CTS632R10

VIDEO Present

VIDEO Data Collect

VIDEO Data Transfer

VIDEO Function keys

VIDEO Contents

ModelsCTS-632R10

High cost-effective Engineering Total Station with newly upgraded EDM and compensator, perfect for your works!




1000 Mt



Reflectorless Range



Clear EDM view



Newly upgraded EDM

Tough and Reliable



Stable performance in all environment

Pratical Programs

Survey & Editing

     Motore



Advanced Hardware, Top Performance




Cost-Effective choice for your surveying and engineering tasks, its long range EDM, density ball bearing axis system, high accuracy angle measurement module represent the highest level of manufacturing skill of China.



Video: 1000m Non-prism measurement in cloudy weather:


https://www.youtube.com/watch?v=D1bLO8n3mXQ


       Display Program 632



  Practical Survey Program



Various of surveying programs onboard allow surveyors to complete their tasks directly  in the field: angle offset, angle repetition, dual-distance offset, coordinate measurement, REM, MLM, Staking out,area calculation, Road Design, etc.

Videohttps://www.youtube.com/watch?v=3nr1SRstLXk



       Data Transfer 632



Convenient Data Transmission Software



CTS-632R10 supports Mini USB / Serial port cable connection.

Special data transmission and editing software can quickly transfer data and save time. You can design roads and export to CTS-632R10 for LAYOUT swiftly. Multiple data formats are supported.


Video: https://www.youtube.com/watch?v=o-R6wtF4p8k



       Temperatura pressione



Temp. & Pressure, Auto Setting


Temperature and pressure changes make a negative impact on the accuracy of distance measurements. The Smart T-P Sensor automatically monitors the changes and adjusts the distance calculations.

CTS632R10-EN:
X-METER CTS 632R10

Distance Measurement

Measurement Range:

1 prism:  3500-4000m

3 prism: 5000m

Reflectorless: 1000m

Accuracy:

Prism: ±(2+2ppmx D)mm

Reflectorless: ±(3+2ppmx D)mm

Measuring Time:

Prism: 0.2 - 1.3s

Reflectorless: 0.5-3s

Atmosphere Correction:

Auto

Prism Constant Correction:

Auto












Angle Measurement

Measurement Method:

Absolute Encoding

Accuracy:

1"/ 2"

Minimum Reading:

0.1"/ 1" optional

Compensator:

Dual Axis Liquid-electricRange ±4', Accuracy 1"







User Interaction




Operation System:



Linux

Color Screen:

Yes, 3.5 inches LCD

Touch Screen:

Yes

Keyboard:

30 keys with backlight

Trigger Key:

Yes

Bluetooth & wifi:

Bluetooth

Internal Storage:

98MB, 833,000 data blocks

  External Storage:

  8GB USB flash disk, 8GB SD card







Working Capability




Program:

Coordinatemeasurement, setout, area, volume, COGO, road design

Graphic Display:


Yes

Laser Pointer & Laser Plummet:

Yes

Endurance:

8 hours

Setout Guide Light:



Optional
